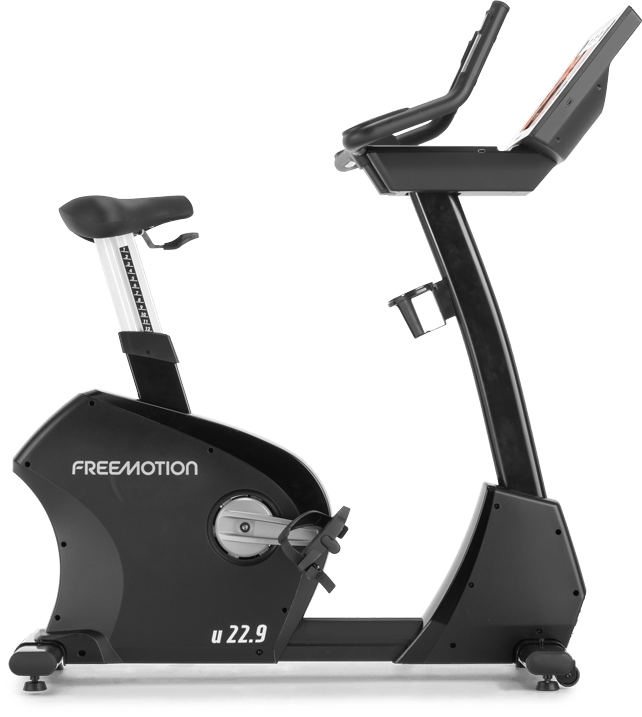

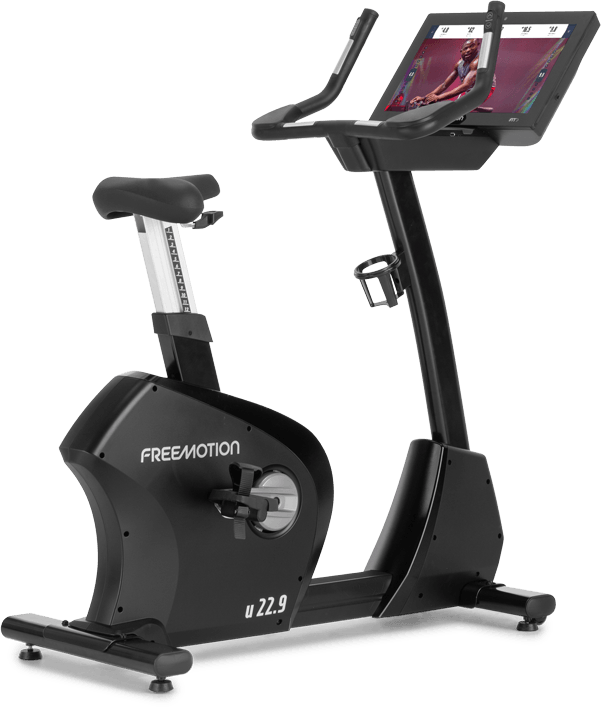

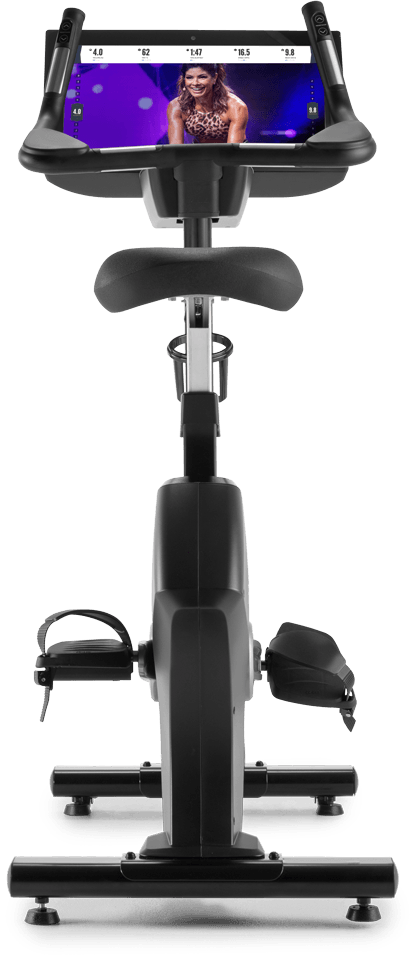

Freemotion u22.9 Upright Bike

Offer your members the consistent, effective, and low-impact cardio solution found on the Freemotion Upright Bike, while allowing them to cycle the world, right from the cardio floor.

Consistent Cycling Solution

From the Quicklift™ Overmolded Seat to the Step-Thru™ design, this bike is poised to be your go-to cardio solution. Give yourself a consistent and efficient cardio experience by choosing between sitting down and starting to pedal or exploring the world with your favorite trainer through thousands of coach-led workouts.

Accessible and Engaging Solution

Participate in the high-intensity studio classes you've been wanting to attend but may not have felt comfortable joining because the equipment accessibility. With a Step-Thru™ design and ergonomically engineered seat, you have the equipment to thrive.

High-definition Display

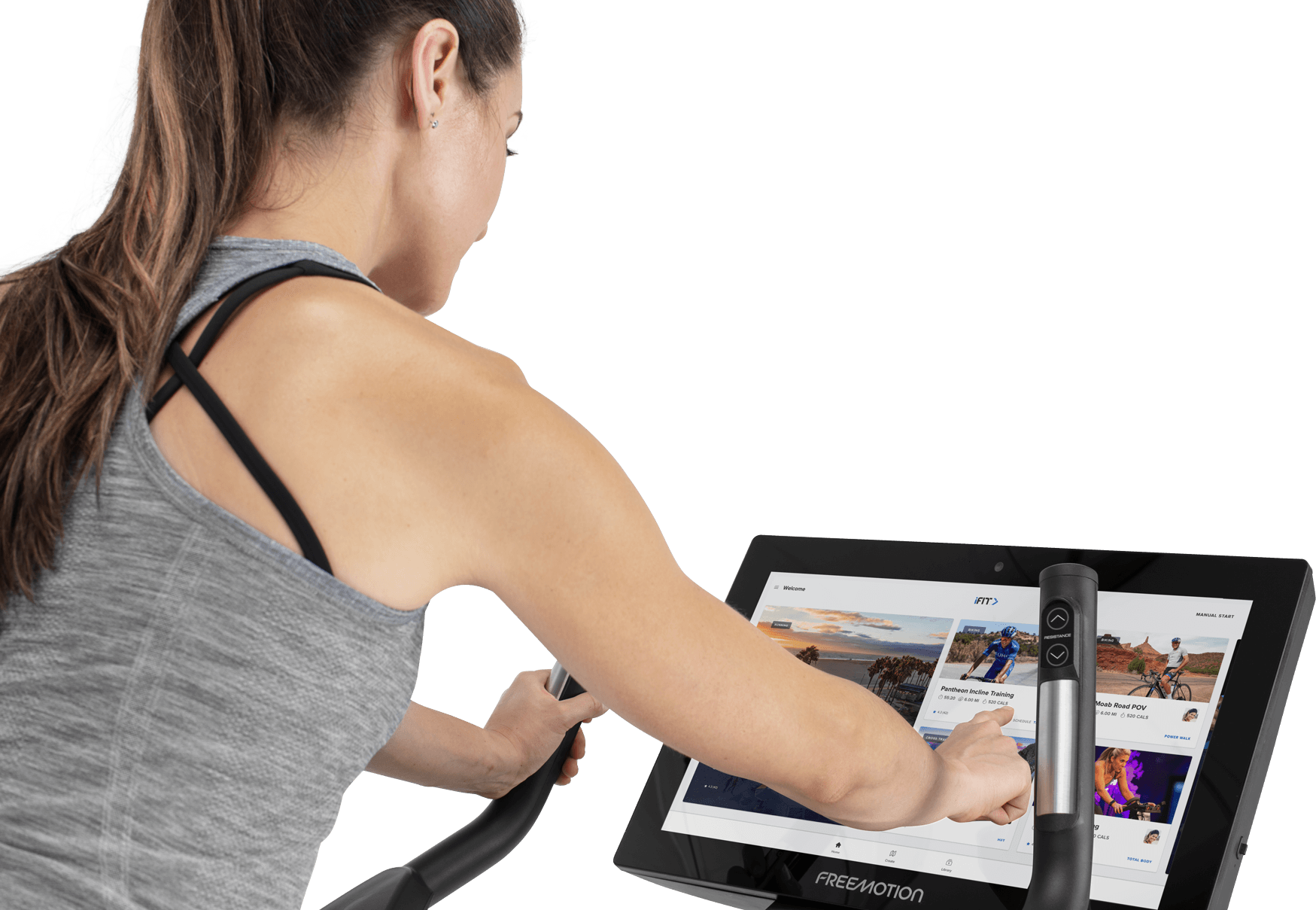

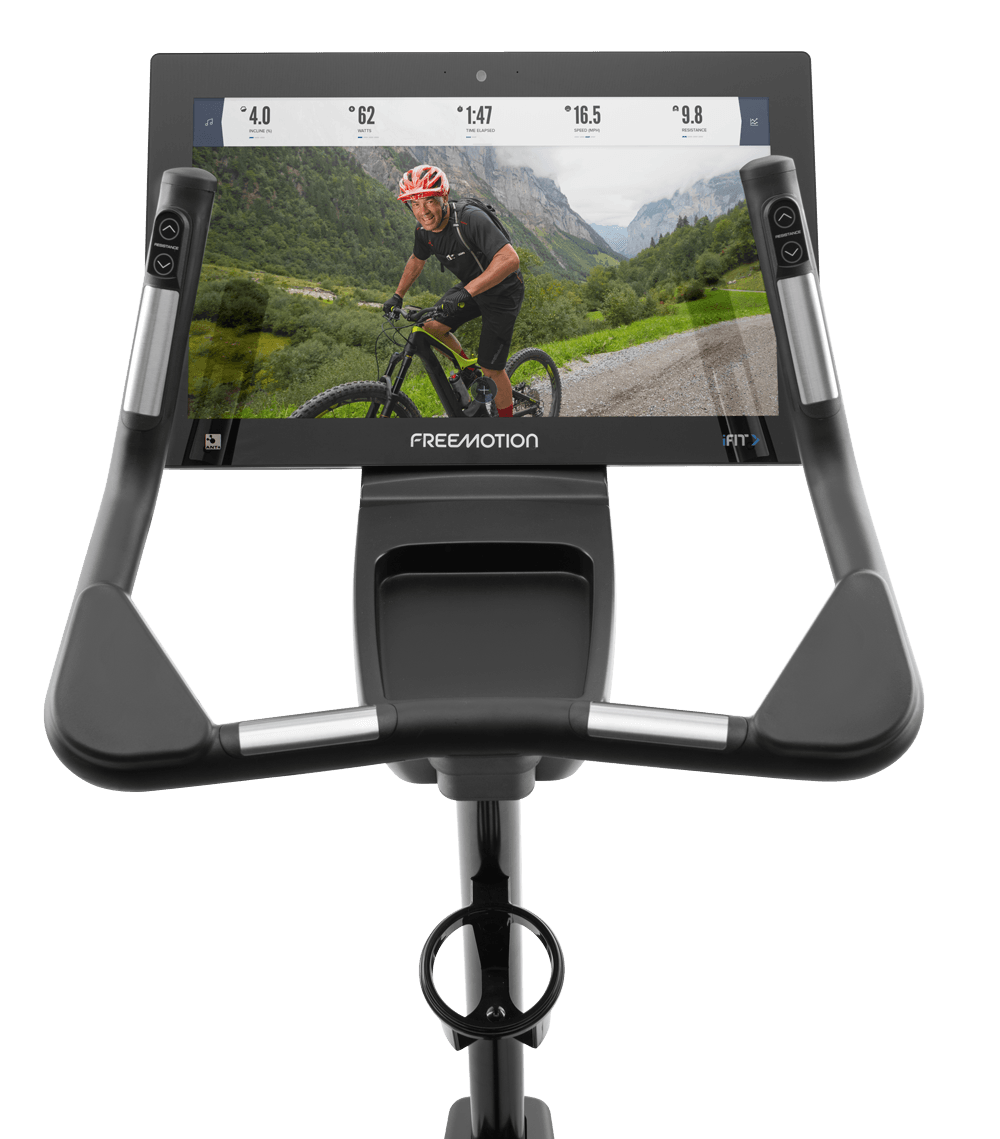

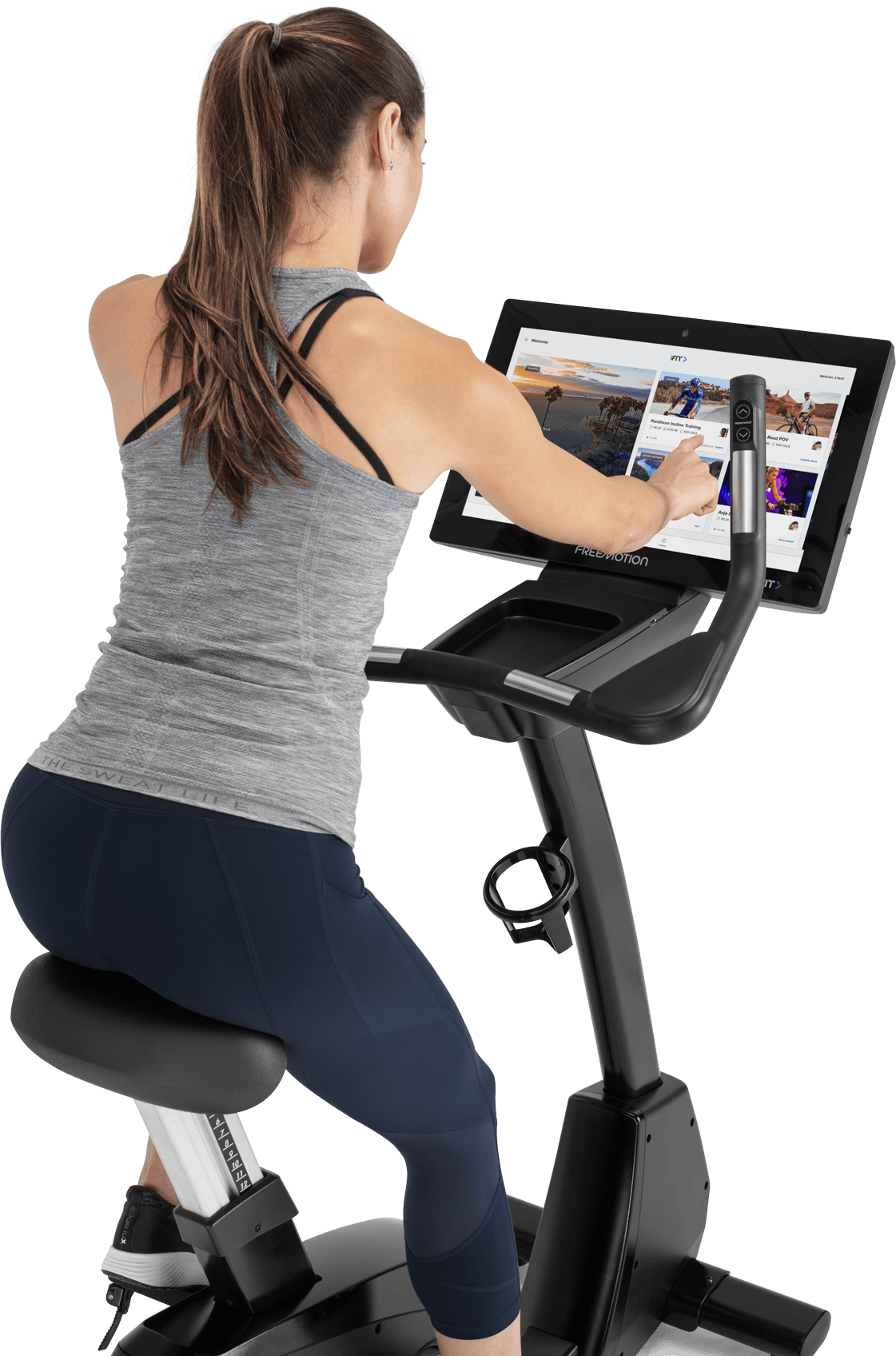

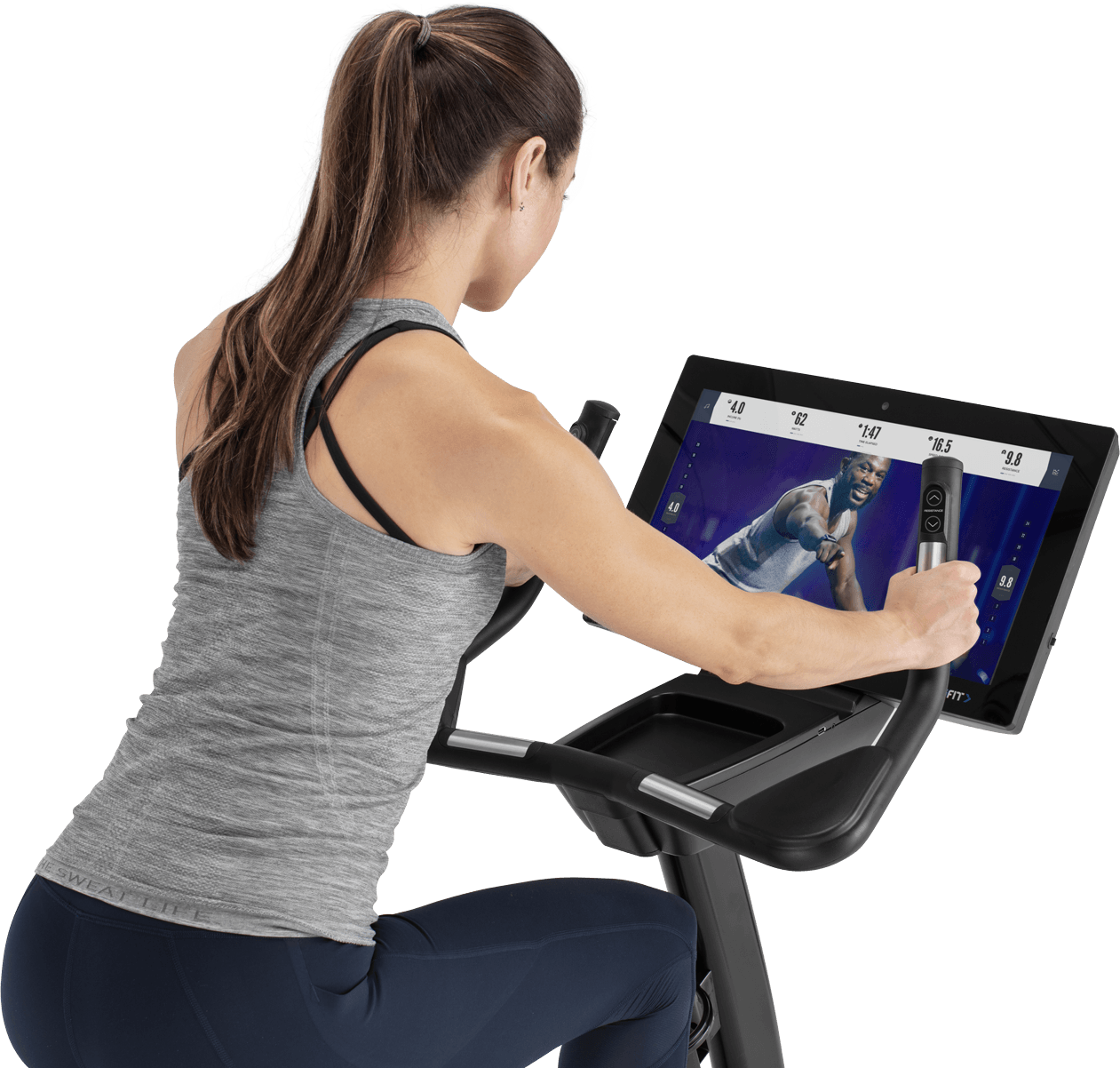

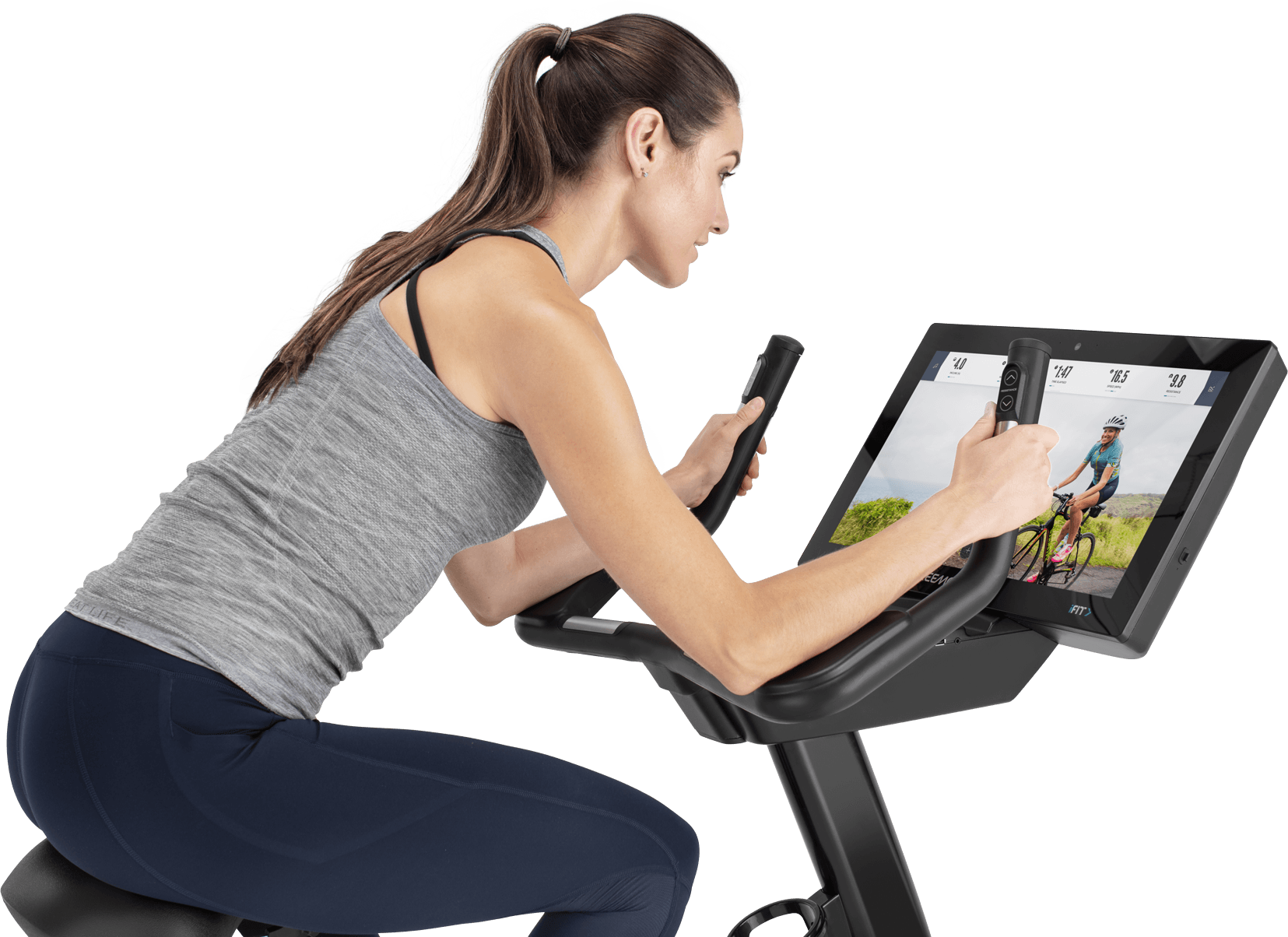

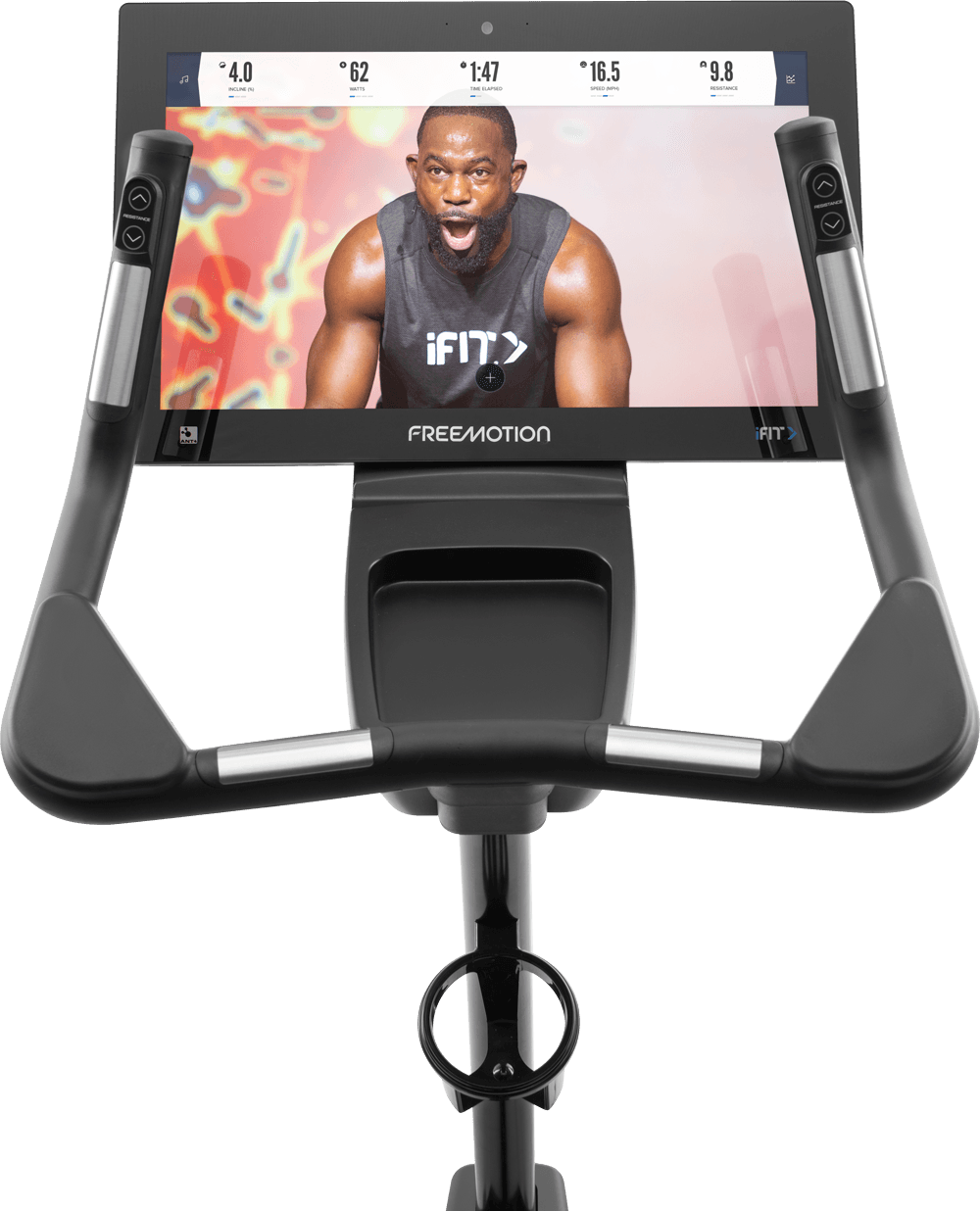

Immerse yourself in visually stunning imagery while working out in exotic locations around the globe, or watch a favorite TV program on this high-definition 22in / 55cm capacitive touchscreen.

On-the-fly Adjustments

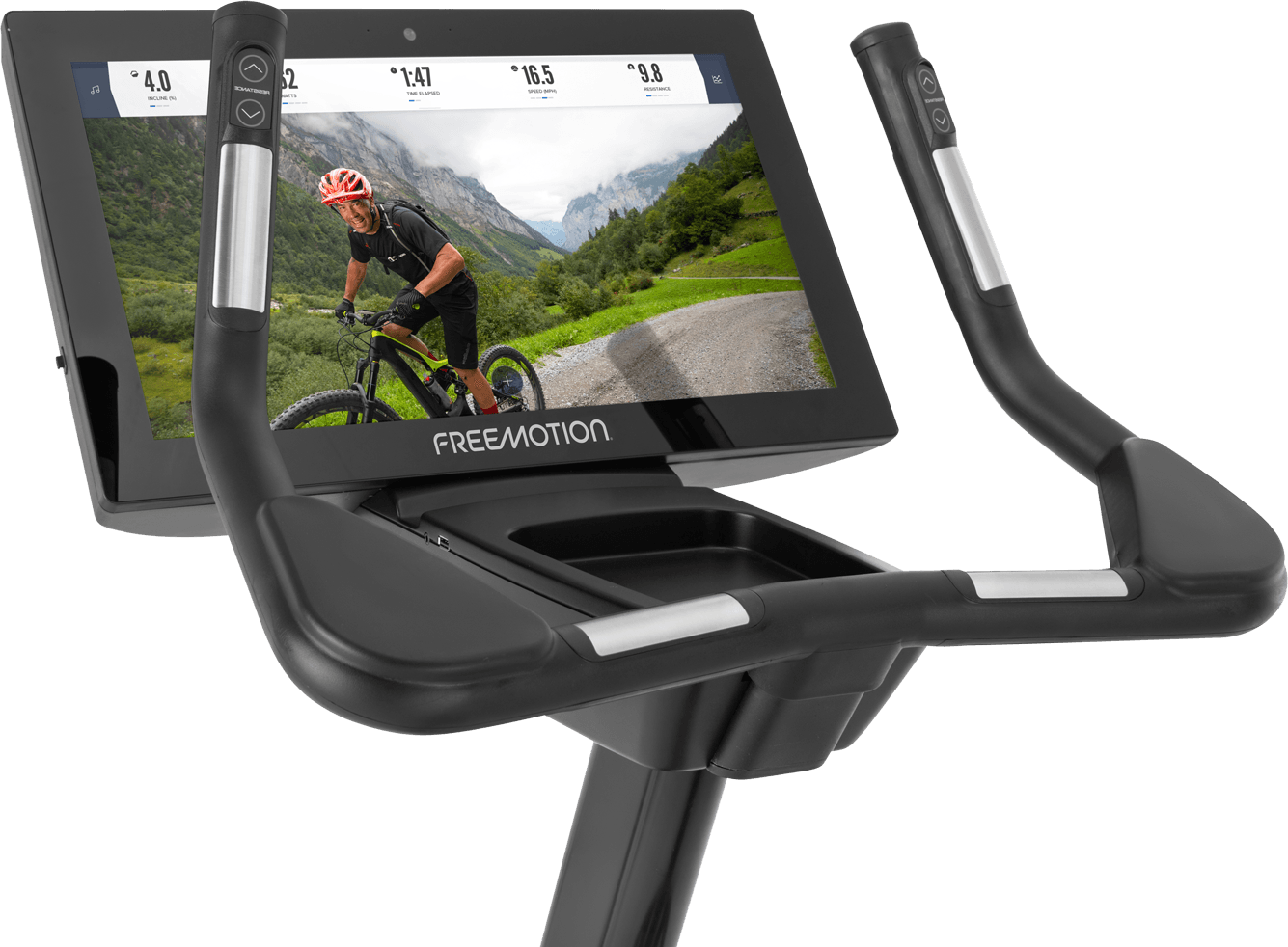

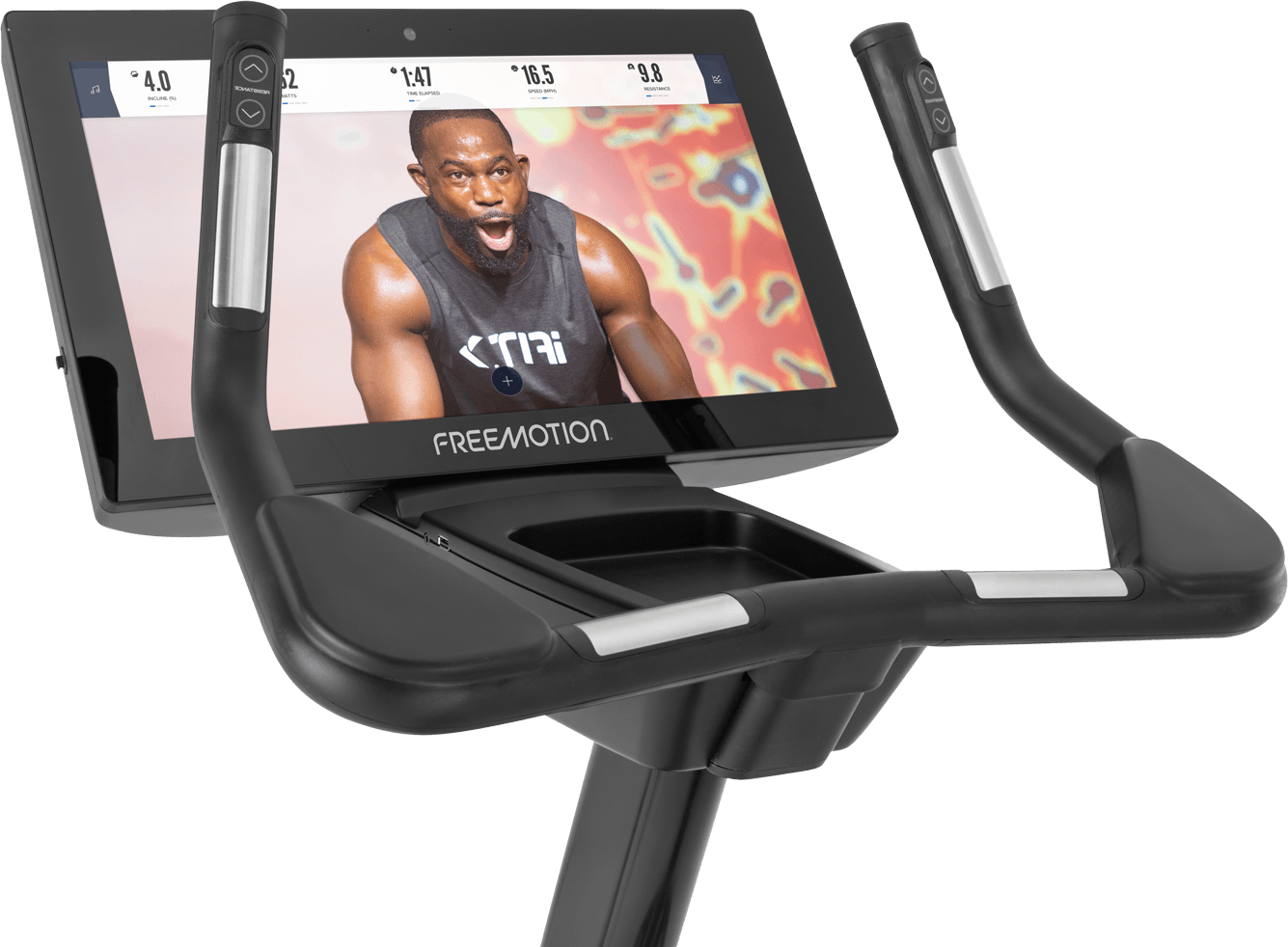

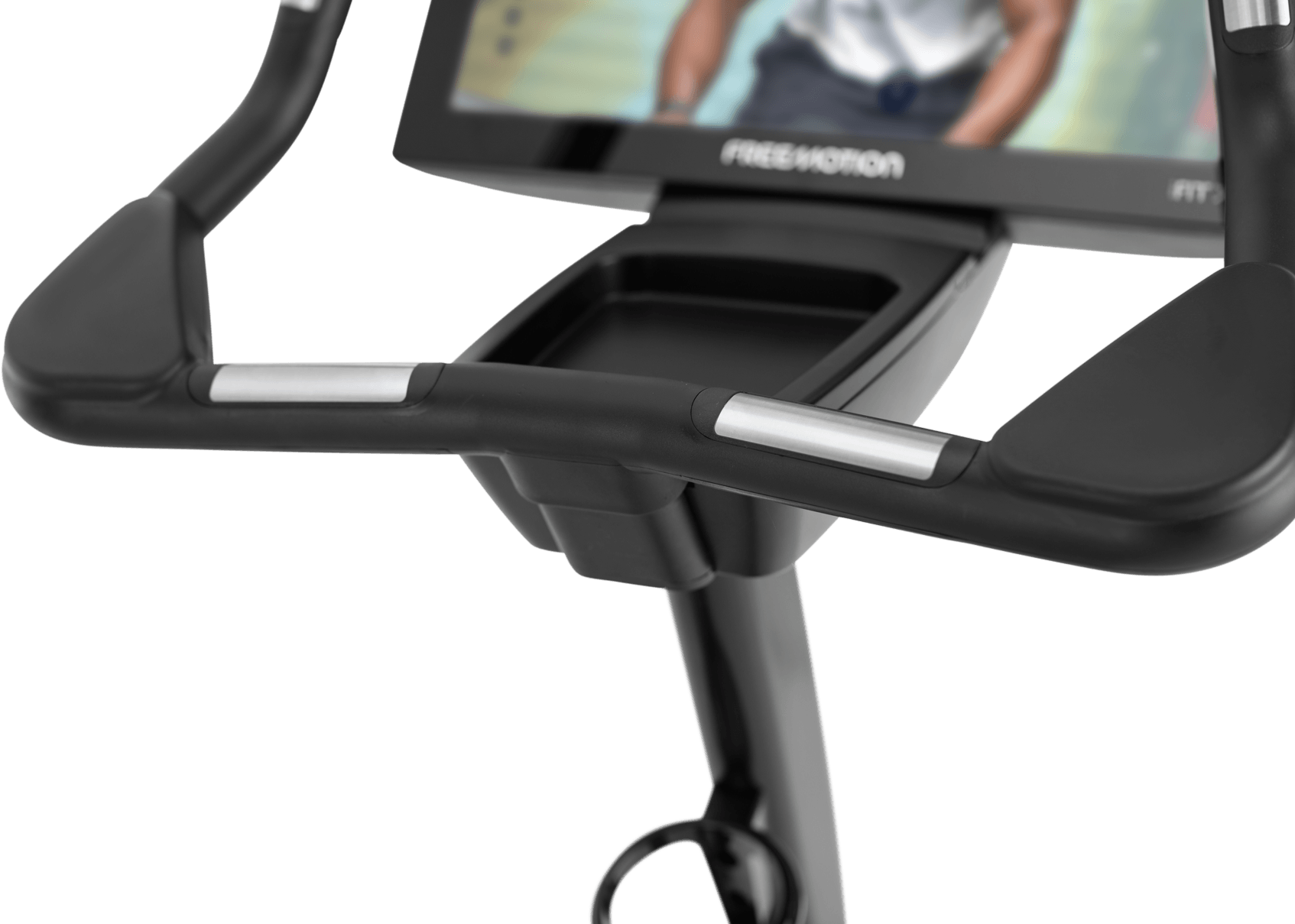

Override or adapt the programming to meet your needs by quickly adjusting the resistance with controls conveniently placed directly on the handlebars.

Know your Zone

Get real-time data during your workout with built-in EKG grips, so you know when you're in the ideal heart-healthy zone. Also compatible with ANT+ and Polar®.

Low-impact Cardio Workout

Treat your joints to a low-impact cardio workout while engaging your muscles, heart, and mind in a stimulating and effective workout.

Advanced Workout Metrics

Never lose sight of your personal fitness goals with real-time metrics that go beyond traditional feedback, leveraging heart rate, intensity, incline statistics, and more to measure and track your fitness journey.

Audio-enhanced Experience

Deeply immerse yourself in your workout with an enhanced audio experience when connecting via Bluetooth or headphone jack.

Power Up

Charge your devices during your workout with a convenient USB port.

Contact Sales Team
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Specs

Console Features:

  • Display Type: 22 in / 55 cm HD Capacitive Touchscreen
  • Resolution: 1080p ISP LCD Screen
  • Controls: Touchscreen, On-handle Digital Controls
  • Workout Metrics: Speed, Incline, Distance, Calories, Calories/Hour, Heart Rate, Average Heart Rate, Pace, Elapsed Time, Time Remaining, Time of Day
  • Number of Programs: Thousands of Global Workouts and Studio Classes with iFIT
  • Preset Programs: Limitless iFIT Training Options
  • Google Maps: Enabled
  • Console Language(s): English
  • Featured Languages: EN, also DE, ES, FR, IT, PT, RU, ZH
  • Maximum Workout Time: 99:59 (99 Minutes + 59 Seconds)
  • Maximum Pause Time: 60 Seconds
  • Additional Options: Quick-Start Manual Mode

Entertainment:

  • TV Tuner: US & Canada: NTSC/ATSC, QAM, Pro Idiom, Set-Top Box Ready
    International: PAL B/G, PAL I, SECAM D/K, SECAM L, DVB-T, DVB-T2, DVB-C
  • Closed Captioning: CC1-4, TEXT 1-4

Connectivity:

  • Recommended Internet Connection: Dedicated Ethernet - Cat 6
  • Ethernet Requirements: Cat6 Preferred (Cat5e or higher required)
  • WiFi Connection: 2.4 / 5 GHz (Dedicated Ethernet Strongly Recommended)
  • WiFi Minimum Requirements: 10 Mbps for one unit, 6 Mbps/unit for 2-3 units, 4 Mbps/unit for 4-6 units, 3 Mbps/unit for 7 or more units
  • Video Connections: Coax, HDMI Input
  • Audio Connections: 3.5 mm Audio Out, Bluetooth

Product Features:

  • Crank & Axle: 3-Piece Crank
  • Drive Belt: Quiet Belt Drive System, Hutchinson
  • Pedals: Oversized, Adjustable Pedals
  • Gear Ratio: N/A
  • Resistance System: 400 Watt EMS Brake Resistance System
  • Heart Rate Monitoring: Dual EKG Pulse Sensors, ANT+ and Polar Compatible
  • Workout Fan: N/A
  • Accessory Charging: USB Charging Port
  • Accessory Holder(s): Dual Water Bottle Holders, Phone Holder
  • Grips: Soft touch, upper-body grips

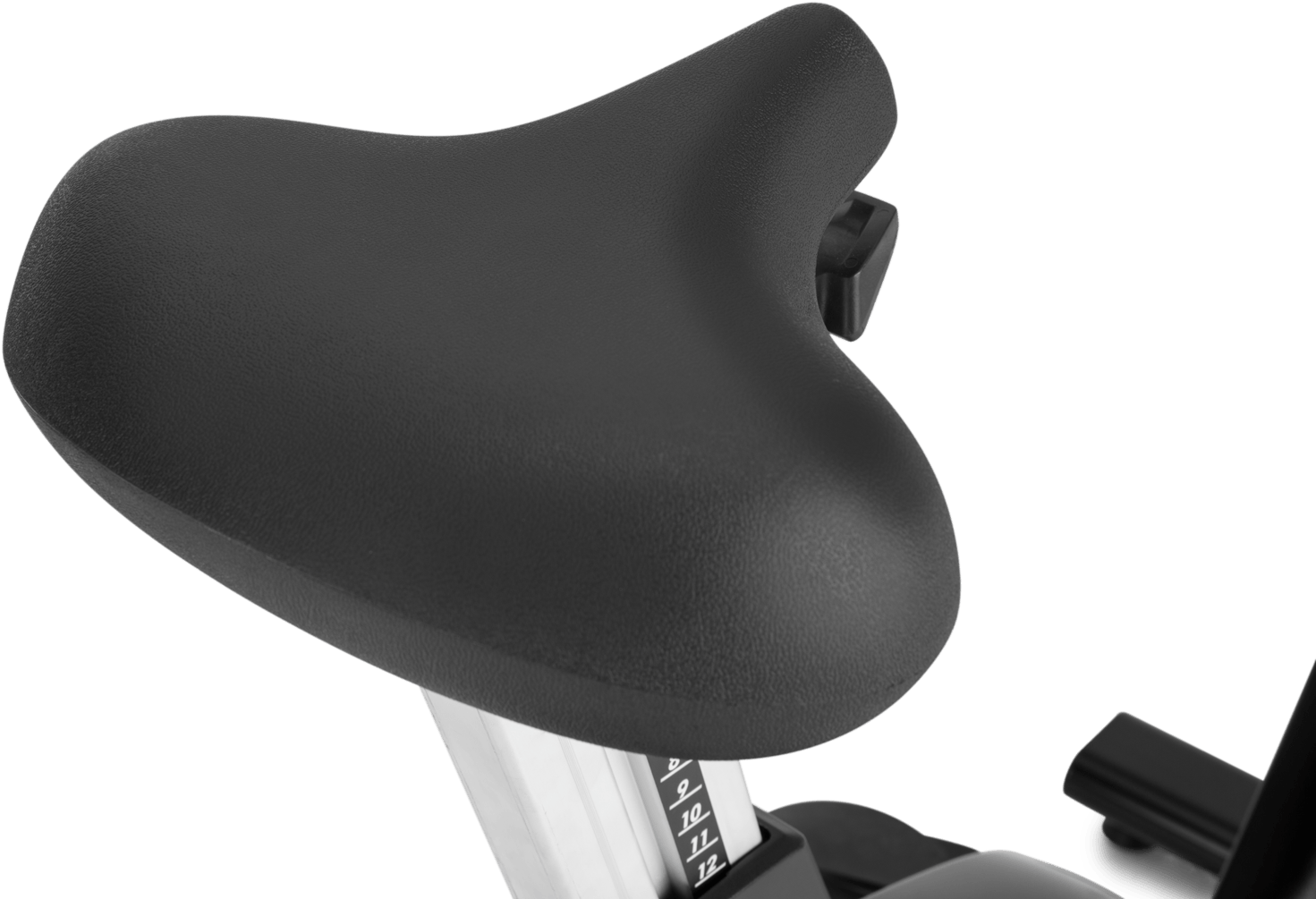

  • Seat: Overmolded Quick Adjust Seat
  • Accessibility: Highly-Accessible Step-Thru™ Design
  • Positioning: Large Adjustable Leveling Feet
  • Transport Wheels: 2 in / 5 cm plastic transport wheels
  • Color Options: N/A (Flat Black is standard color)
  • Unit Options: Metric or Imperial
  • Power Options: 110-120 VAC, 2 Amp
    220-240 VAC, 1 Amp

Product Specifications:

  • Maximum User Weight: 400 lb / 181 kg
  • Resistance Levels: 1-24 Levels of Resistance

Dimensions & Weight:

  • Product Dimensions L x W x H: 50 x 24 x 58 in / 127 x 60.9 x 147.3 cm
  • Product Weight: 176.4 lb / 80 kg
  • Shipping Dimensions L x W x H: 53 x 24 x 58 in / 134.6 x 60.9 x 147.3 cm
  • Shipping Weight: 206 lb / 93.4 kg

Power Requirements:

  • U.S. & Canada: 110-120 VAC, 2 Amp
  • International: 220-240 VAC, 1 Amp

Certifications:

  • cTUVus, FCC/IC, BQB:

High-usage Warranty (US & Canada):

  • Frame: 7 Years
  • Parts: 2 Years
  • Console: 2 Years
  • Labor: 1 Year
  • Cosmetic & Wear Items: 6 Months

High-Usage Warranty (International):

  • Frame: 7 Years
  • Parts: 2 Years
  • Console: 2 Years
  • Labor: 1 Year
  • Cosmetic & Wear Items: 6 Months

Low-usage Warranty (US & Canada):

  • Frame: 7 Years
  • Parts: 3 Years
  • Console: 3 Years
  • Labor: 3 Years
  • Cosmetic & Wear Items: 6 Months

Low-Usage Warranty (International):

  • Frame: 7 Years
  • Parts: 3 Years
  • Console: 3 Years
  • Labor: 1 Year
  • Cosmetic & Wear Items: 6 Months
Upholstery also available in:
